21.5Inch TFT Display Modules FHD LVDS High Contrast Lcd Ratio 5000:1 G215HVN01.001

Model Number : G215HVN01.001

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 5000pcs/month

Delivery Time : 3-5 working days

Packaging Details : factory original packing

Resolution : 1920*1080

Viewing Angle : 89/89/89/89 (Typ.)(CR≥10)

Signal Interface : LVDS (2 ch, 8-bit) , 30 pins Connector

Luminance : 300 cd/m² (Typ.)

Contrast Ratio : 5000:1 (Typ.) (TM)

Operating Temp. : 0 ~ 60 °C

Application : Industrial Application

Contact Now

21.5Inch Resolution 1920(RGB)×1080 FHD LVDS High Contrast Ratio 5000:1 Lcd Panel G215HVN01.001 for Industry Monitor

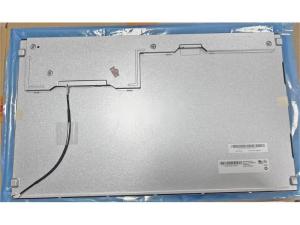

G215HVN01.001 is a 21.5 inch diagonal a-Si TFT-LCD display panel product, with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 60°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It's general features are summarized in the following: sRGB, WLED Backlight, Life ≥ 50K hours, With LED Driver, Upside I/F, Matte , TCO 5.1 Compliance. Made in China (S03), Thickness = 12.7mm. Based on its features, JB recommend that this model be applied to Industrial etc.
